Transmitter‑Receiver Fuse Locator | 110‑230V for Residential & Commercial Electrical Troubleshooting

Product Overview

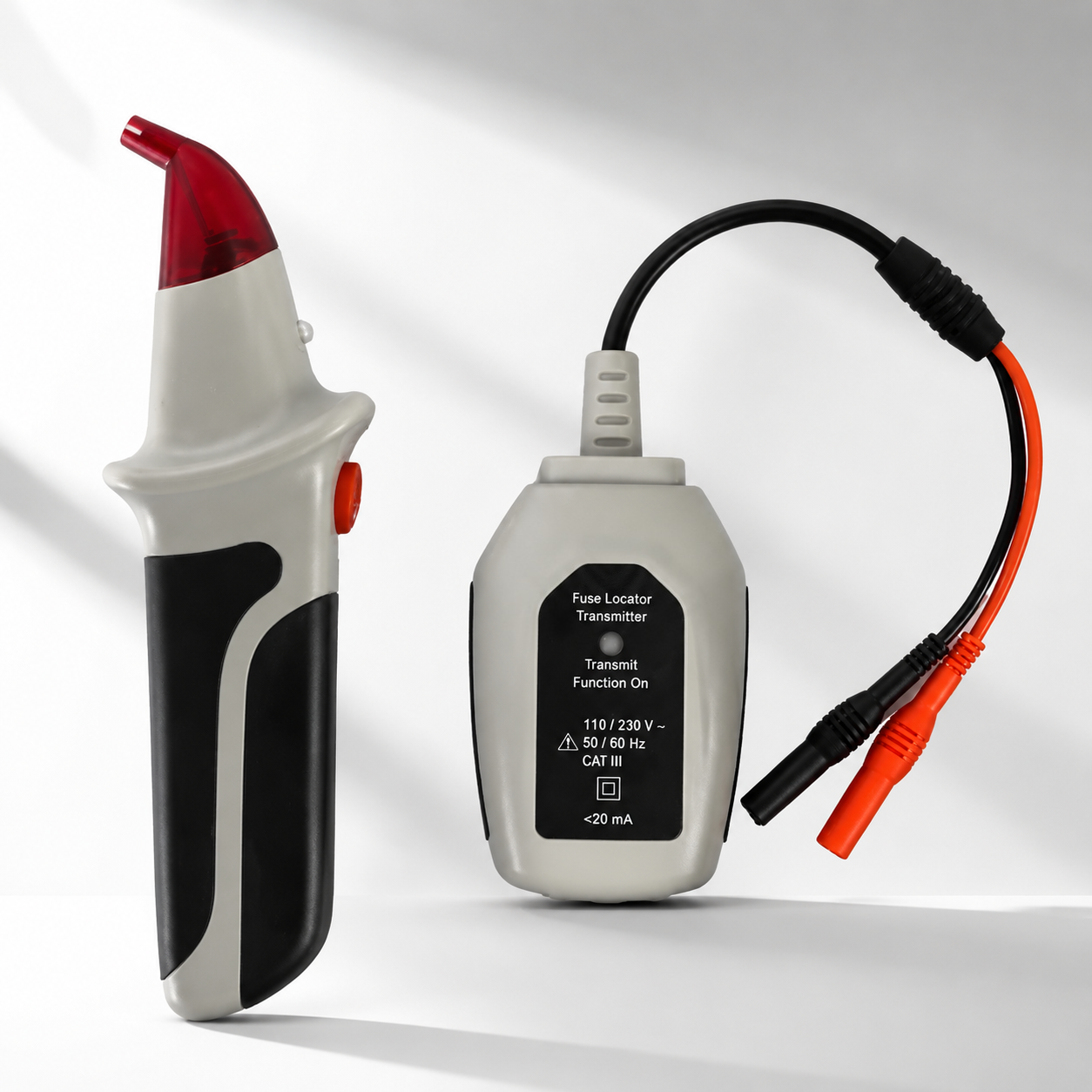

This portable fuse and circuit‑breaker locator quickly identifies matching breakers or fuses inside consumer units and fuse boards via transmitter‑receiver signal detection. It delivers clear audible and visual feedback to cut troubleshooting time for electricians, maintenance staff and on‑site electrical repair jobs.

Key Features

• Automatic Sensitivity Adjustment – Auto‑tunes signal reception for precise pinpointing of target fuses or breakers without manual setting.
• Audio‑Visual Dual Indicators – Both sound and light alerts give clear test feedback for fast, intuitive on‑site identification.
• Wide Voltage Compatibility – Supports 110V‑230V working circuits to fit most common residential and commercial power systems.
• Multiple Connection Options – Works with crocodile clips, mains socket adaptors and light socket adaptors for flexible circuit hook‑up.
• Auto Power‑Saving Function – Receiver auto‑shuts down after 3‑minute inactivity to extend battery service life.
• Standard 4 mm Connector Interface – Industry‑standard ports support common test accessories for convenient field‑work expansion.

Specifications

• Operating AC Voltage: 110‑230 V
• Safety Rating: EN61010‑1 CAT III 300 V
• Receiver Power: 1 × 9V PP3 alkaline battery
• Unit Dimensions: 14.5 cm(W) × 21 cm(H) × 6 cm(D)
• Material: Hard impact‑resistant plastic housing
• Design: Transmitter‑receiver portable locating kit, compact handheld form
• Best For: Electrician field service, residential & commercial circuit troubleshooting, building electrical maintenance

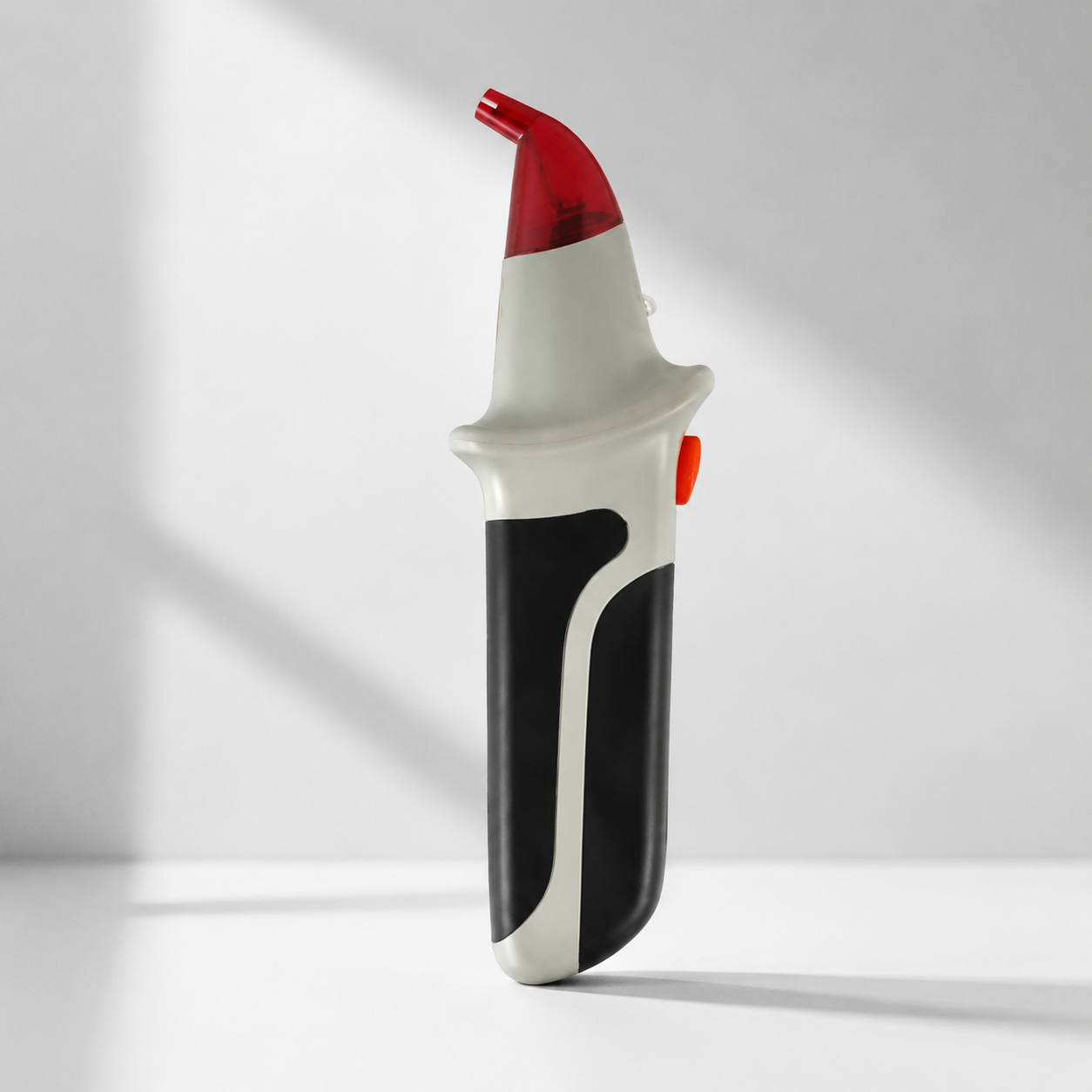

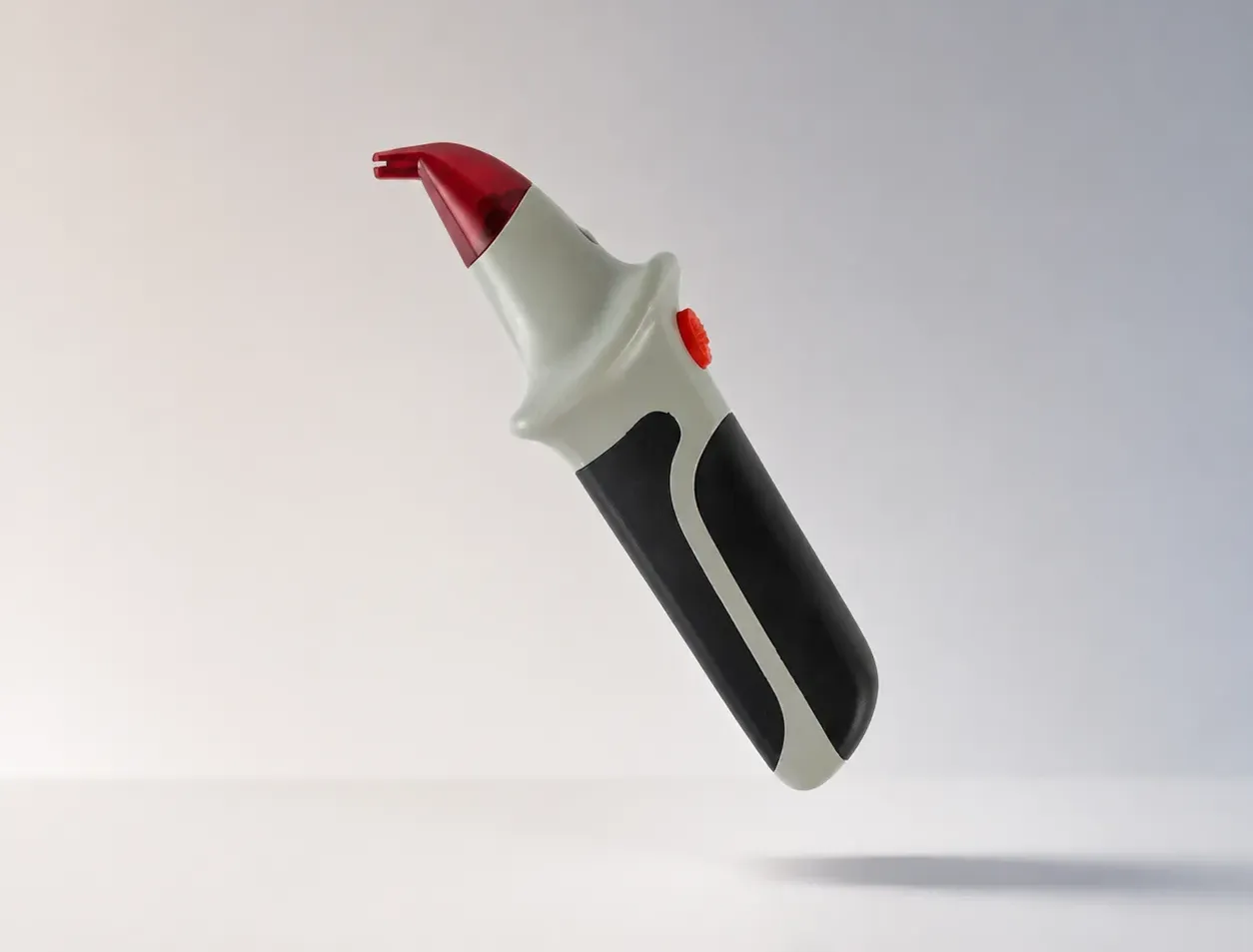

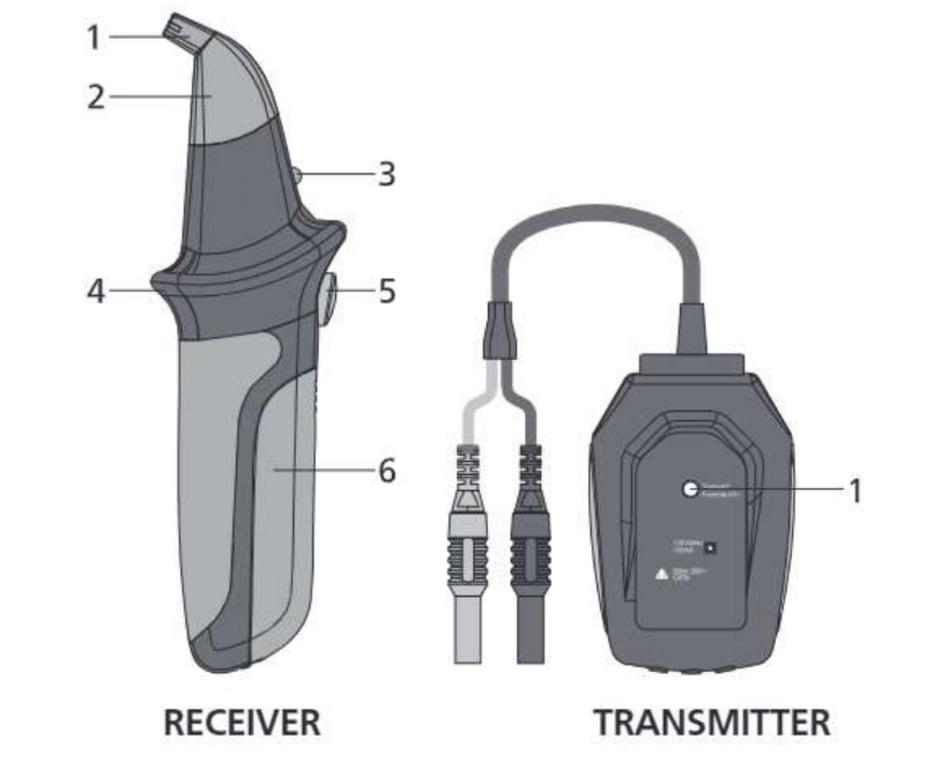

Receiver

1. Scanning Probe

2. LED Indicator

3. Signal LED Indicator

4. Buzzer

5. ON/OFF/RESET button

6. Battery Cover

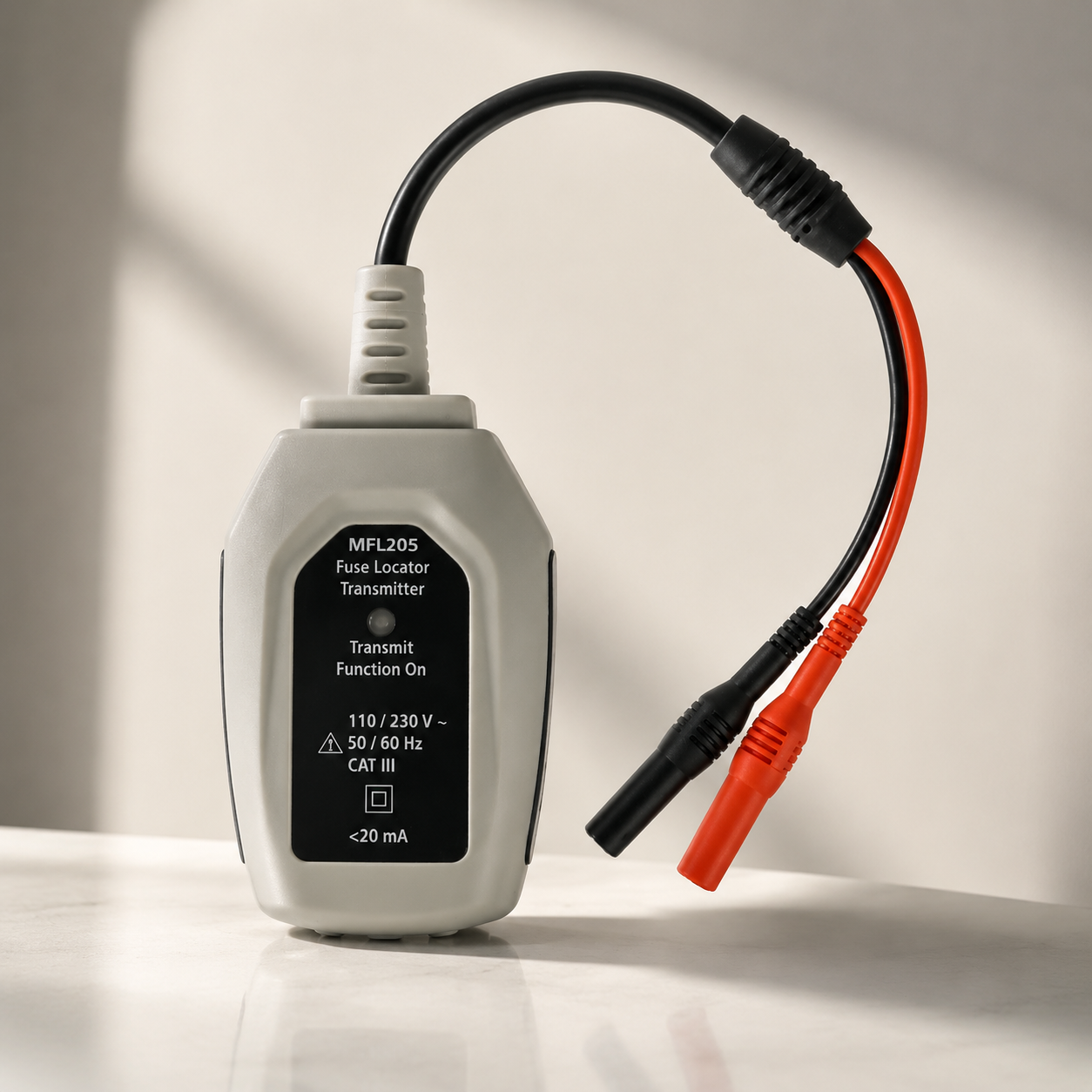

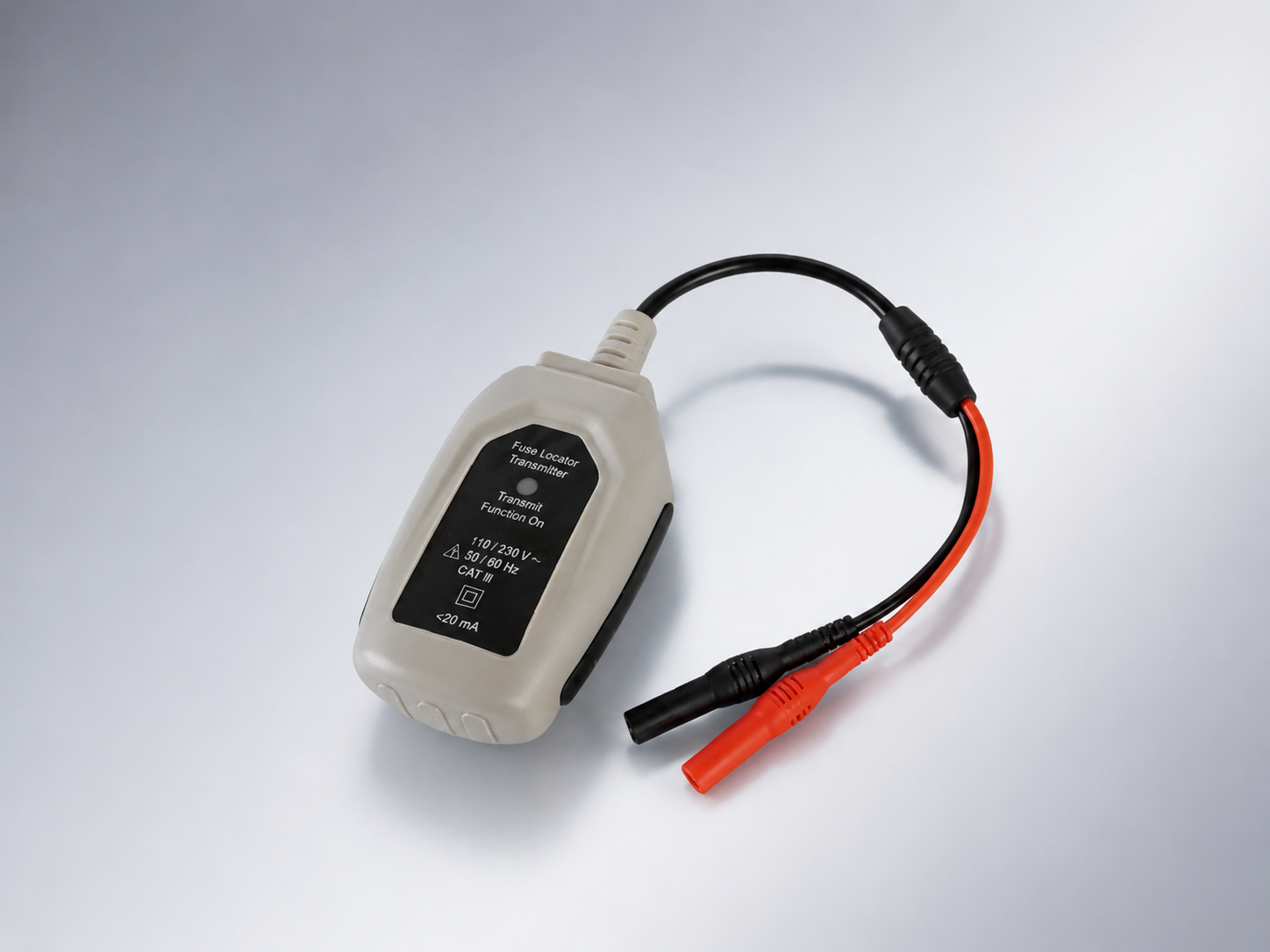

Transmitter

1. Power Indicator Light

Transmitter

There is no power switch on the transmitter. Injection of the test signal will automatically start upon connection to the mains supply (110/230V 50/60 Hz).

 Receiver

The button on the receiver has three functions: ON/OFF/RESET. To turn on, press and release the ON/OFF/RESET button. LED indicator (2) will light and glow red and the receiver will start beeping. To reset, with the receiver switched on, push and immediately release the ON/OFF/RESET button. To power down, press and hold down the ON/OFF/RESET button for longer than one second.

What's Included

📦 1 × Fuse locator transmitter unit

📦 1 × Fuse locator receiver unit

📦 1 × Set of crocodile clip connection leads

📦 1 × Hard protective carry case

📦 1 × User operation instruction manual

Speed‑up your circuit tracing work and find the correct fuse or breaker in seconds! ✨⚡🛍
